How to Build a Large Steel Warehouse Without Columns (60m–100m Span Explained)

What Is a Large Clear Span Steel Warehouse?
Simply put, it is a building with no internal load‑bearing columns — fully open interior space, often referred to as a clear span steel building. Typical spans range from 40m, 60m, 80m, to 100m and beyond. These buildings are widely used for warehouses, logistics hubs, agricultural storage, and aircraft hangars. For any large steel warehouse project, a larger clear span means greater layout flexibility and higher efficiency for forklifts and shelving systems.

Structural Systems Used for 60m–100m Span Buildings
For spans between 60 and 100 meters, the industry mainly relies on three solutions:

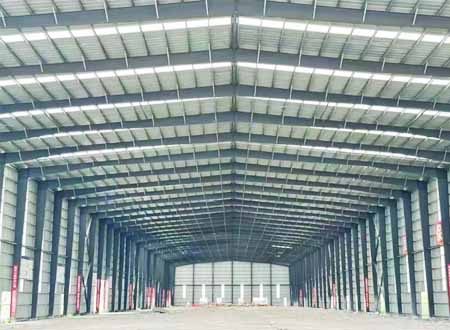

• Portal Frame Structure – Suitable for spans around 60m, cost‑effective, simple to fabricate. A common choice for small to medium large‑span projects.

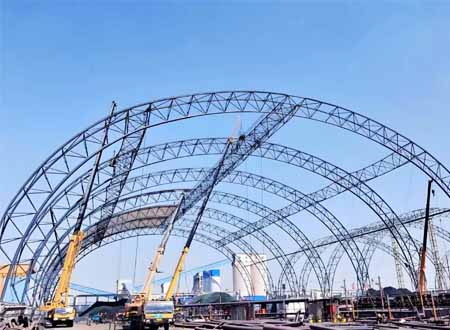

• Steel Truss System – Better suited for 60m–100m spans, lighter weight, more efficient material use. This is a popular solution for 100m span warehouse projects.

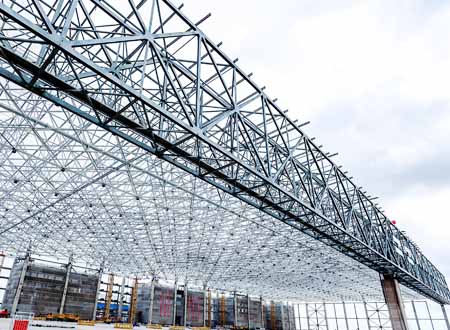

• Space Frame Structure – Ideal for ultra‑large spans and special projects (hangars, stadiums). High stability, but relatively higher cost.


Key Engineering Challenges
Larger spans bring more complex engineering challenges, which directly affect warehouse construction cost:
Wind Load & Stability – A larger span creates higher lateral forces. The structure must be specifically reinforced against lateral displacement.
Deflection Control – Preventing roof sagging to ensure long‑term safety. This is an important quality indicator for any clear span steel building.
Steel Consumption Optimization – Balancing weight and strength to avoid waste. Directly impacts the economy of a large steel warehouse.
Foundation Design – Large spans change load distribution paths. Foundation solutions must be re‑evaluated; otherwise, settlement risks increase significantly.

What Determines the Cost?
Key factors influencing large span steel warehouse cost include: span width, steel grade, local wind/snow loads, design efficiency, and fabrication standard. One critical insight: cost is not determined by steel price per ton, but by structural efficiency per square meter. Between a 60m span and a 100m span project, steel consumption per square meter can differ by more than 30%. That is why structural selection in the early stage is extremely important.

Common Mistakes and How to Choose the Right Solution
Common mistakes in overseas projects include: focusing only on "price per ton" while ignoring overall structural efficiency, choosing the wrong structural system, underestimating wind loads, ignoring installation constraints, and accepting unrealistic low quotes.
How to choose?
60m → portal frame or truss
80m → optimized truss system
100m → truss or space frame
The best solution depends on actual usage, local climate conditions, and budget.
