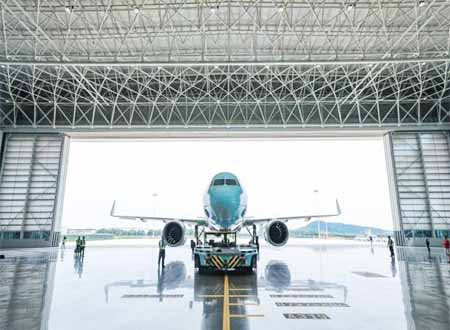

The steel roof is characterized by its ability to achieve spans ranging from 50 to 200 meters without intermediate columns. Owing to its excellent spatial performance, it is widely used in large-span roofing structures such as stadiums, museums, aircraft hangars, and terminals. So, how can a steel roof be constructed?
1;Selection of Structural Type
The traditional prefabricated portal frame structure cannot achieve a single span of more than 50 meters. As a steel roof, ensuring structural stability and durability is essential. The space frame structure is the best choice for this purpose. This type of structure can generally be divided into truss structures and space grid structures.
A truss structure commonly uses steel pipes as the main material. It features excellent overall integrity and easy installation, but its components are large in volume, resulting in higher transportation costs.
The space grid structure is a type of space frame in which members are connected by bolt balls. It offers superior overall stability, convenient installation, and smaller component size, making it the preferred choice for large-scale steel roof projects worldwide. 2; Selection of Materials
The materials for a steel roof include truss beams, purlins, and roofing panels. For buildings located in humid or coastal areas, hot-dip galvanized materials are recommended. The roofing panels can be made of aluminum-magnesium-manganese sheets, color-coated steel sheets, or sandwich panels. Among these, color-coated steel sheets offer the best cost performance, aluminum-magnesium-manganese sheets have the longest service life, and sandwich panels provide the best thermal insulation performance. 3: Installation Process

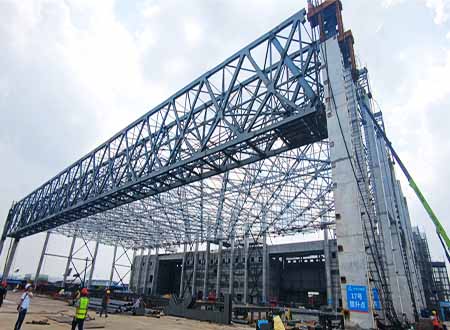

The space grid structure is connected to concrete or steel columns through its supports. All steel components are prefabricated and assembled using high-strength bolts to connect the chord and web members. Installation can be carried out on the ground and then lifted into position, or assembled directly in the air. Among these methods, ground installation is highly efficient and can significantly reduce crane operation costs.
4;Selection of Supplier Henan Gefan Building Materials Co., Ltd. is a professional manufacturer of prefabricated steel buildings with over 15 years of dedicated experience in the industry. We possess extensive expertise in construction and can provide the optimal customized solution for any complex project or structural form.
If you are planning to build a hangar, large-scale warehouse, airport terminal, stadium, Contact us to receive your tailor-made design proposal and quotation.
